Fundamentals

What is a Database?

A database is software that imposes structure and rules on raw, messy disk storage so data can be accessed efficiently and reliably.

Databases are modular systems consisting of multiple software components:

1. Transport layer: Accepts requests
2. Query processor: Determines the most efficient way to run queries
3. Execution engine: Carries out the operations
4. Storage engine: Manages data persistence

Client/Server Model

• Database instances (servers): Long-running processes (postgres, mysqld, mongod) that include:
  • CPU threads
  • Memory (buffer cache)
  • Open files (data files, WAL, indexes)
  • Network listeners (ports like 5432, 3306)
• Application instances (clients): Request data from the database (Node.js APIs, mobile apps, etc.)

Architectural Layers of Database instances

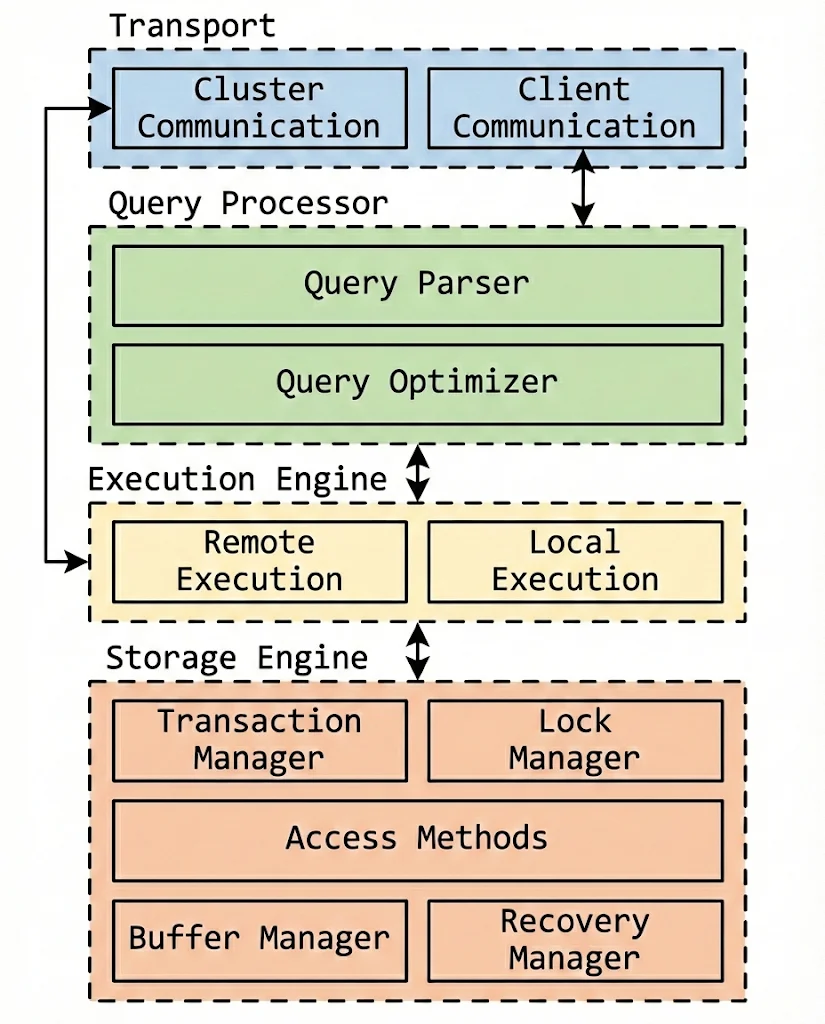

The layered architecture of a database management system, showing how queries flow from transport through query processor, execution engine, to storage engine.

Transport / Communication Subsystem

• Handles connection protocol (e.g., TCP/IP, Unix Sockets)
• Manages handshake and receives the raw SQL string
• Receives queries from clients
• Hands off to the query processor
• Performs access control after parsing, ensuring security based on the interpreted request

Query Processor

1. Query Parser:
   • Syntax analysis: Checks grammar (e.g., missing semicolons, misspelled SELECT)
   • Semantic analysis: Checks validity (e.g., does the table exist? Does the column belong to it?)
   • Authorization check: Checks permissions (e.g., does the user have READ access?)
2. Query Optimizer:
   • Statistics analysis: Examines data distribution and index information
   • Plan generation: Decides the most efficient execution strategy
     • Should we use an index or scan the table?
     • In what order should we join tables?
   • Redundancy elimination: Removes impossible and redundant query parts
   • Optimization techniques:
     • Index ordering selection
     • Cardinality estimation
     • Access method selection
     • Cost-based decision making (considers transfer costs across cluster nodes)
   • Output: Physical execution plan (sequence of operations)

Execution Engine

• Receives the physical execution plan from the Query Optimizer

• Executes operators in the plan:

  • Table scan: Sequentially read all tuples from a table
  • Index scan: Use an index to find specific tuples
  • Join: Combine data from multiple tables (Nested Loop / Hash / Merge)
  • Filter: Apply WHERE conditions
  • Projection: Select specific columns
  • Aggregation: Compute GROUP BY, SUM, COUNT, etc.

• Controls execution flow:

  • Tuple-by-tuple execution: Process one row at a time (traditional iterator model)
  • Batch-based execution: Process multiple rows together for better performance

• Requests data from the Storage & Transaction Subsystem

• Coordinates with:

  • Transaction manager: Ensures proper isolation levels
  • Lock manager: Manages concurrent access to data

• Streams result tuples upward to the communication subsystem

Storage & Transaction Subsystem

• Stores, retrieves, and manages data in memory and on disk
• Acts as the persistent, long-term memory of each node
• Provides a simple API for creating, updating, deleting, and retrieving records
• DBMSs build on storage engines to add features like schemas, query languages, indexing, and transactions

1. Transaction/Lock Managers:
   • Ensure ACID properties (Atomicity, Consistency, Isolation, Durability)
   • Handle concurrency so two people don't overwrite the same data simultaneously
2. Buffer Manager:
   • Keeps frequently accessed data in RAM for performance, reducing slow disk reads
3. Access Methods:
   • Code that knows how to read specific file formats (like B-Trees or Heap files)
4. Recovery Manager:
   • Maintains logs and restores system state

Query Flow

Client
   |
   | SQL Query
   v
Transport / Communication Subsystem
   |
   v
Query Parser
   |  - Syntax analysis
   |  - Semantic analysis
   |  - Authorization check
   v
Query Optimizer
   |  - Statistics analysis
   |  - Cost-based planning
   |  - Physical plan generation
   v
Execution Engine (Execution Layer)
   |  - Receives physical plan
   |  - Executes operators (scan, join, filter, etc.)
   |  - Coordinates with transaction/lock managers
   |  - Requests data from the Storage & Transaction Subsystem
   |
   v
Storage & Transaction Subsystem
   |  - Transaction Manager
   |  - Lock Manager
   |  - Access Methods
   |  - Buffer Manager
   |  - Recovery Manager
   |
   | (data pages/tuples)
   v
Execution Engine
   |  - Aggregates results
   |  - Streams result tuples upward
   v
Transport Subsystem
   |
   v
Client
